[아두이노] LCD





LCD 연결 예제

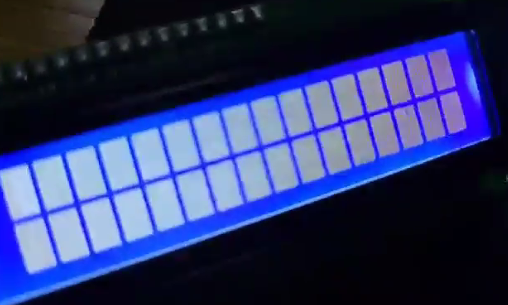

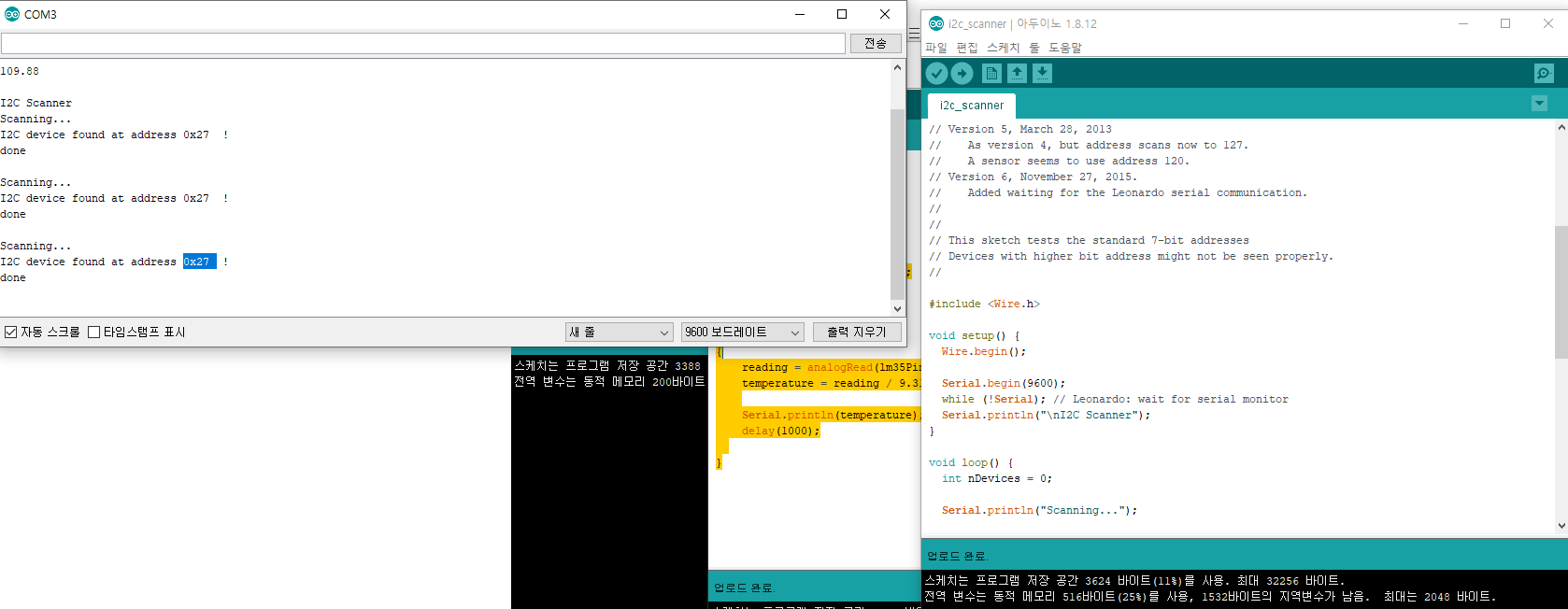

LCD의 주소값 확인







0x27

---

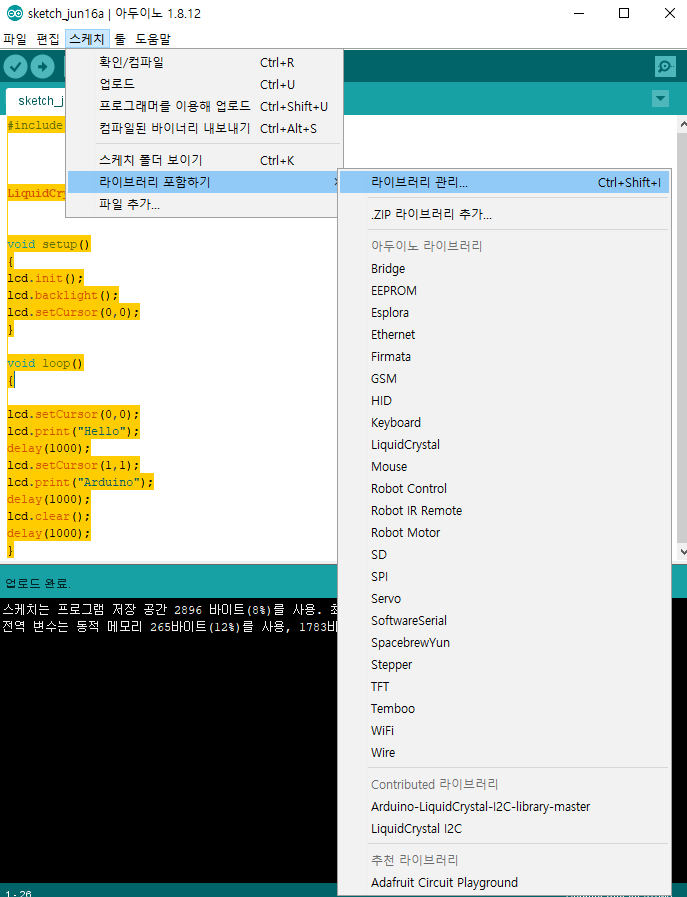

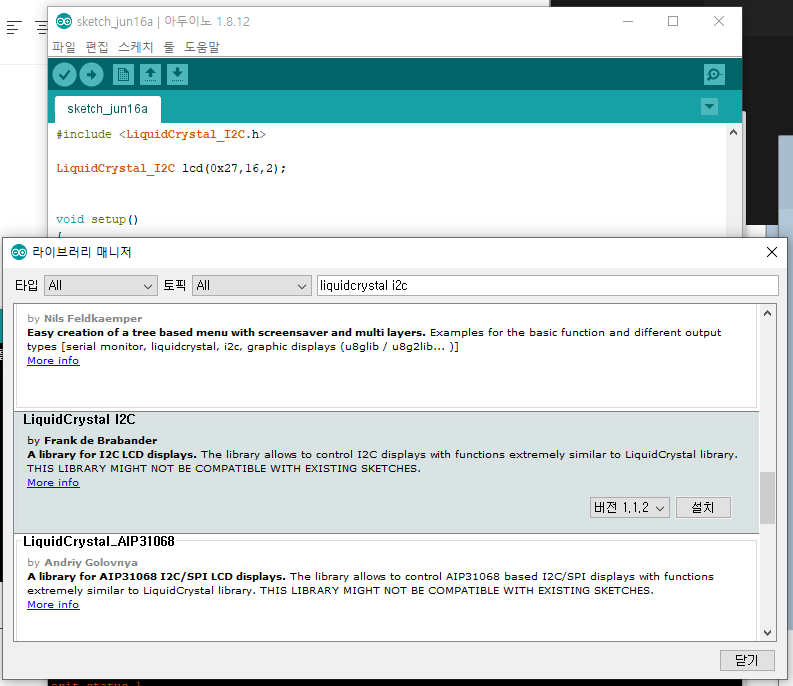

아두이노라이브러리  헤더 필요





---

LCD 사이즈 : 16글자 2줄

#include <LiquidCrystal_I2C.h>



LiquidCrystal_I2C lcd(0x27,16,2);


void setup()
{
lcd.init();
lcd.backlight();
lcd.setCursor(0,0);
lcd.print("test");
}

void loop()
{


}



#include <LiquidCrystal_I2C.h>



LiquidCrystal_I2C lcd(0x27,16,2);


void setup()
{
lcd.init();
lcd.backlight();
lcd.setCursor(0,0);
}

void loop()
{

lcd.setCursor(0,0);
lcd.print("Hello");
delay(1000);
lcd.setCursor(1,1);
lcd.print("Arduino");
delay(1000);
lcd.clear();
delay(1000);
}

---

배열





판 하나에 5칸씩8줄로 만들어짐



만들어진 글자는 print말고 write로 출력

#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27,16,2);

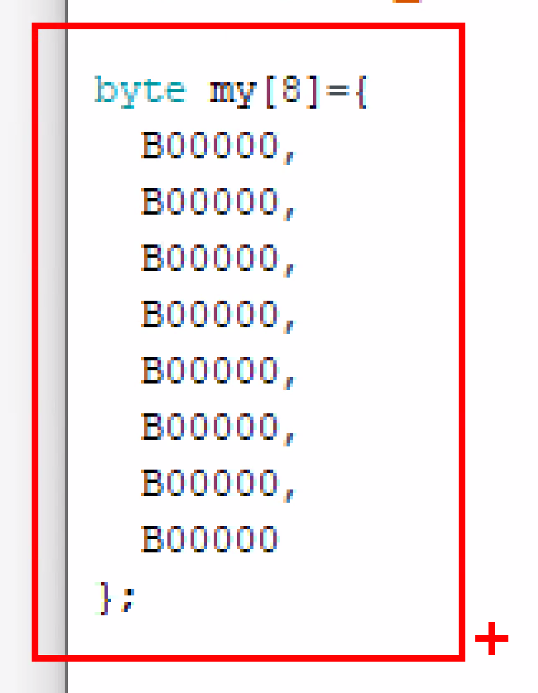

byte my[8] = {
  B00000,
  B00000,
  B11111,
  B01010,
  B11111,
  B00000,
  B00000,
  B00000
  };

void setup()
{
lcd.init();
lcd.backlight();
lcd.setCursor(0,0);
lcd.createChar(0,my);
}

void loop()
{

lcd.setCursor(0,0);
lcd.write(byte(0));
}

---



LiquidCrystal_I2C_Hangul-master.zip

0.01MB



---

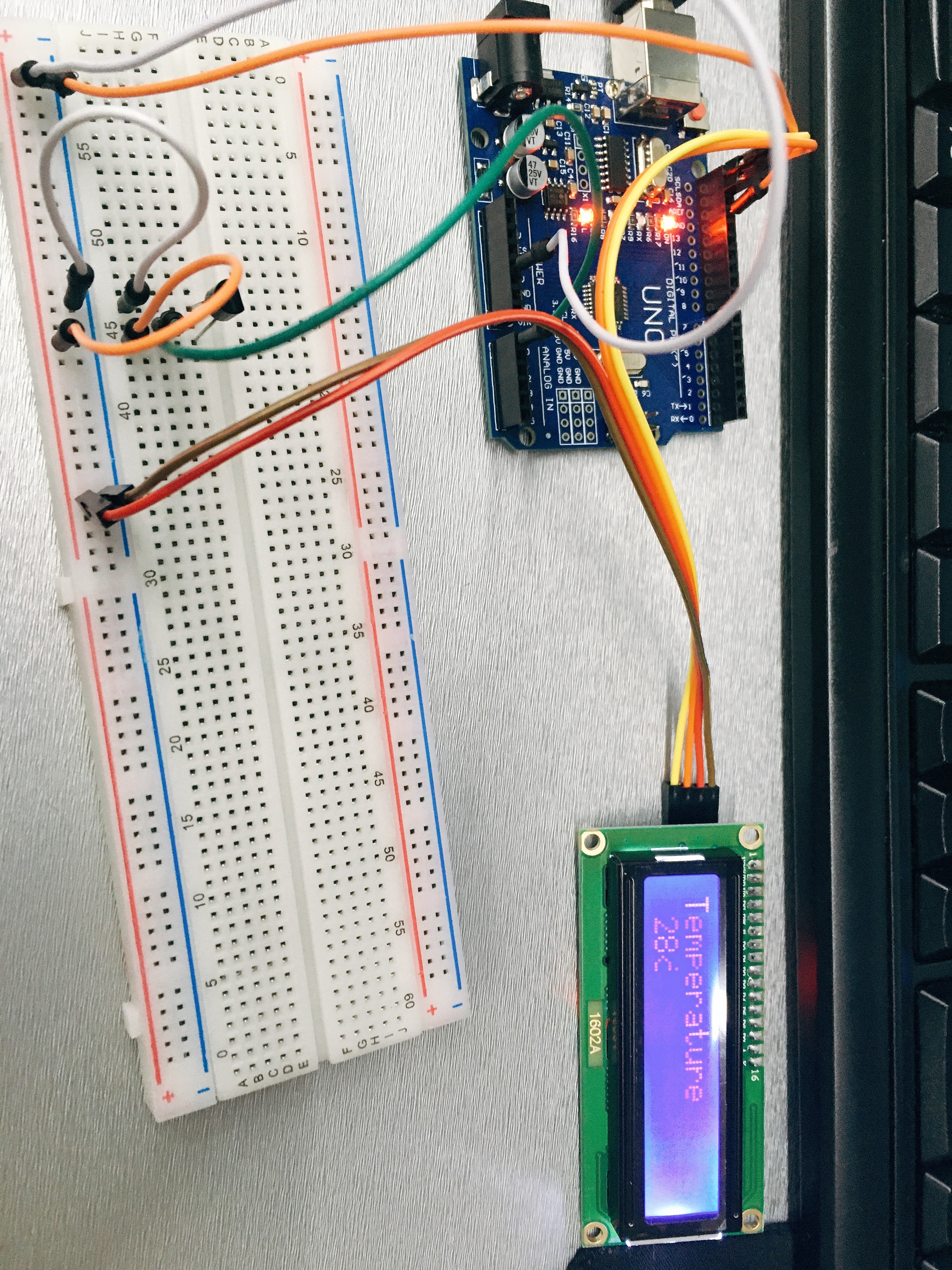

온도 출력

#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27,16,2);

byte tp[8] = {
  B00001,
  B00000,
  B00111,
  B01000,
  B01000,
  B01000,
  B00111,
  B00000
  };

void setup()
{
  analogReference(INTERNAL);
  Serial.begin(9600);
  lcd.init();
lcd.backlight();
lcd.setCursor(0,0);
lcd.createChar(0,tp);
}

void loop()
{
  int input = analogRead(A0);
  int temp = input / 9.31;
  Serial.println(temp);
  delay(1000);
lcd.setCursor(0,0);
lcd.print("Temperature");
lcd.setCursor(1,1);
lcd.print(temp);
lcd.write(byte(0));
}
